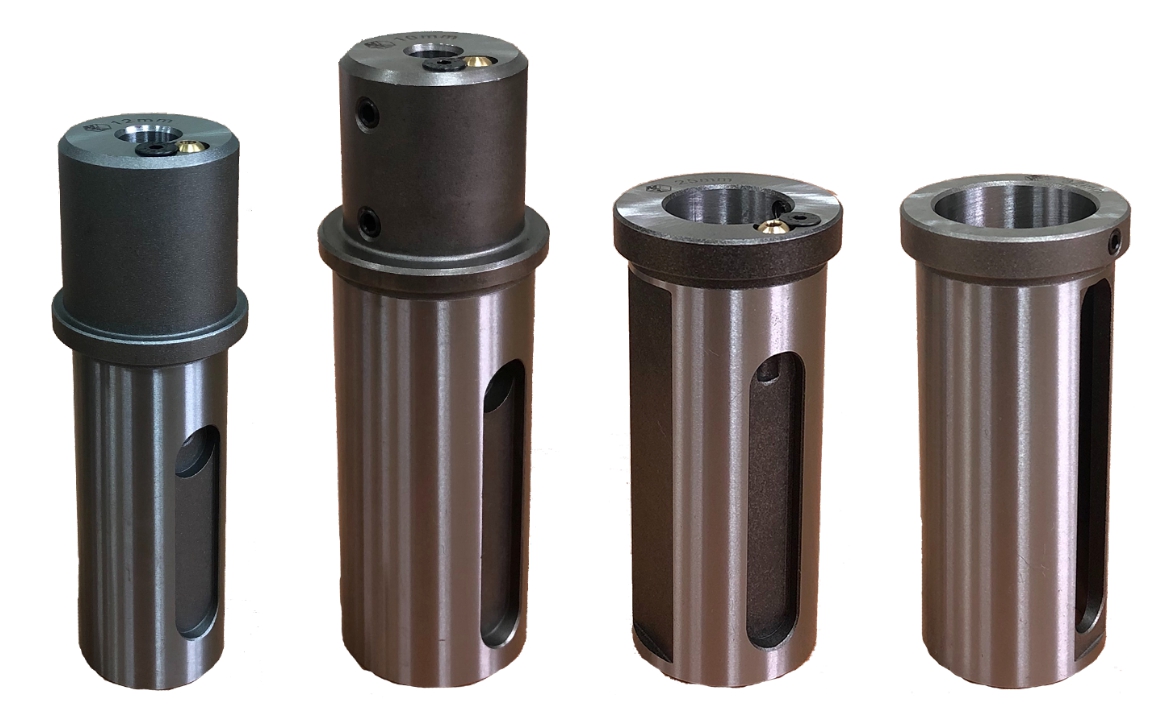

CNC Lathe Cutting Sleeve

Material- SCM21, Carburizing heat treatment
Great anti-vibration #16 / 20 / 25 / 32 / 40 / 50 / 60 / MT / ER

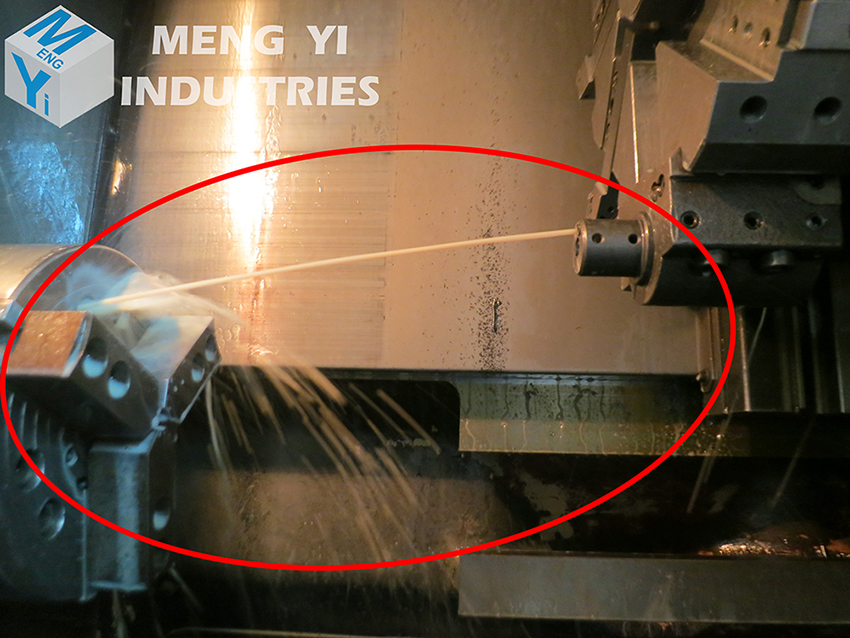

Being added copper beads to adjust the water spraying angle.

Unit：m/m

Item No.	Copper Beads	A	B	C	D
CNC2004	●	20	4	60	67
CNC2005	●	20	5	60	67
CNC2006	●	20	6	60	67
CNC2008	●	20	8	60	67
CNC2010		20	10	60	67
CNC2012		20	12	60	67
CNC2016		20	16	60	67

Item No.	Copper Beads	A	B	C	D
CNC2504	●	25	4	57	65
CNC2505	●	25	5	57	65
CNC2506	●	25	6	57	65
CNC2508	●	25	8	57	65
CNC2510	●	25	10	57	65
CNC2512	●	25	12	57	65
CNC2514	●	25	14	57	65
CNC2516		25	16	57	65
CNC2518		25	18	57	65
CNC2520		25	20	57	65

Item No.	Copper Beads	A	B	C	D
CNC3204	●	32	4	78	118
CNC3205	●	32	5	78	118
CNC3206	●	32	6	78	118
CNC3208	●	32	8	78	118
CNC3210	●	32	10	78	118
CNC3212	●	32	12	78	118
CNC3214	●	32	14	78
CNC3216	●	32	16	78	86
CNC3218		32	18	78	86
CNC3220		32	20	78	86
CNC3225		32	25	78	86

Item No.	Copper Beads	A	B	C	D
CNC4005	●	40	5	90	130
CNC4006	●	40	6	90	130
CNC4008	●	40	8	90	130
CNC4010	●	40	10	90	130
CNC4012	●	40	12	90	130
CNC4014	●	40	14	90	98
CNC4016	●	40	16	90	98
CNC4018	●	40	18	90	98
CNC4020	●	40	20	90	98
CNC4025	●	40	25	90	98
CNC4032		40	32	90	98

Item No.	Copper Beads	A	B	C	D
CNC5010	●	50	10	78	112
CNC5012	●	50	12	78	112
CNC5014	●	50	14	78	112
CNC5016	●	50	16	78	112
CNC5018	●	50	18	78	112
CNC5020		50	20	78	112
CNC5025	●	50	25	78	112
CNC5032	●	50	32	78	112
CNC5040		50	40	78	112

Item No.	Copper Beads	A	B	C	D
CNC6010	●	60	10	110	120
CNC6012	●	60	12	110	120
CNC6016	●	60	16	110	120
CNC6020	●	60	20	110	120
CNC6025	●	60	25	110	120
CNC6032	●	60	32	110	120
CNC6040	●	60	40	110	120
CNC6050		60	50	110	120

Item No.	Copper Beads	A	B	C	D
CNC6310		63	10	110	120
CNC6316		63	16	110	120
CNC6325		63	25	110	120
CNC6332		63	32	110	120
CNC6340		63	40	110	120
CNC6350		63	50	110	120

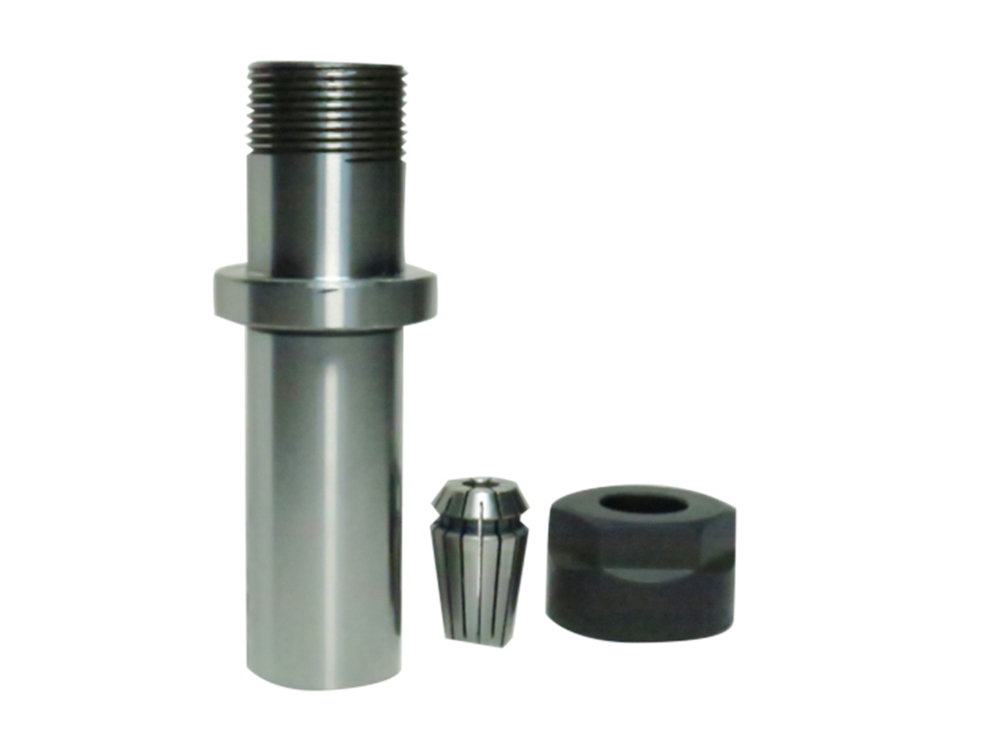

ER Sleeve

Unit：m/m

Item No.	A	B	C	D
CNC25ER16	25	16
CNC32ER16	32	16	79	118
CNC32ER20	32	20	79	118
CNC40ER20	40	20	91	130
CNC40ER25	40	25	91	130
CNC40ER32	40	32	91	130

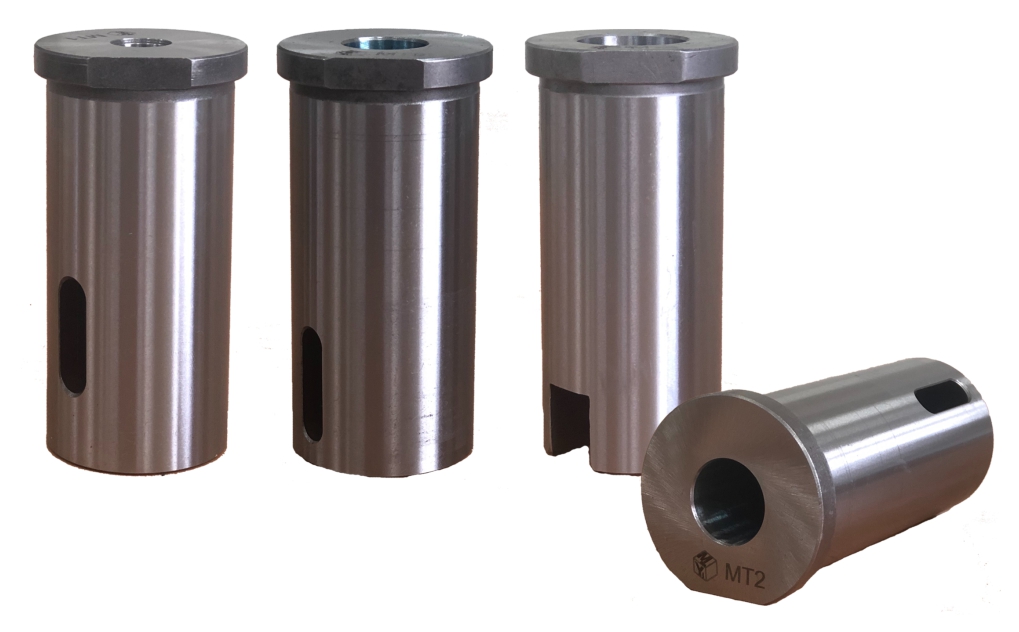

MT Sleeve

Unit：m/m

Item No.	A	B	C	D
25MT1	25	MT1	60	76
25MT2	25	MT2	60	76
25MT3	25	MT3	60	76
32MT1	32	MT1	65	75
32MT2	32	MT2	65	75
32MT3	32	MT3	65	75
40MT1	40	MT1	81	87
40MT2	40	MT2	81	87
40MT3	40	MT3	81	87
40MT4	40	MT4	110	116
50MT1	50	MT1	114	120
50MT2	50	MT2	114	120
50MT3	50	MT3	114	120
50MT4	50	MT4	114	120
