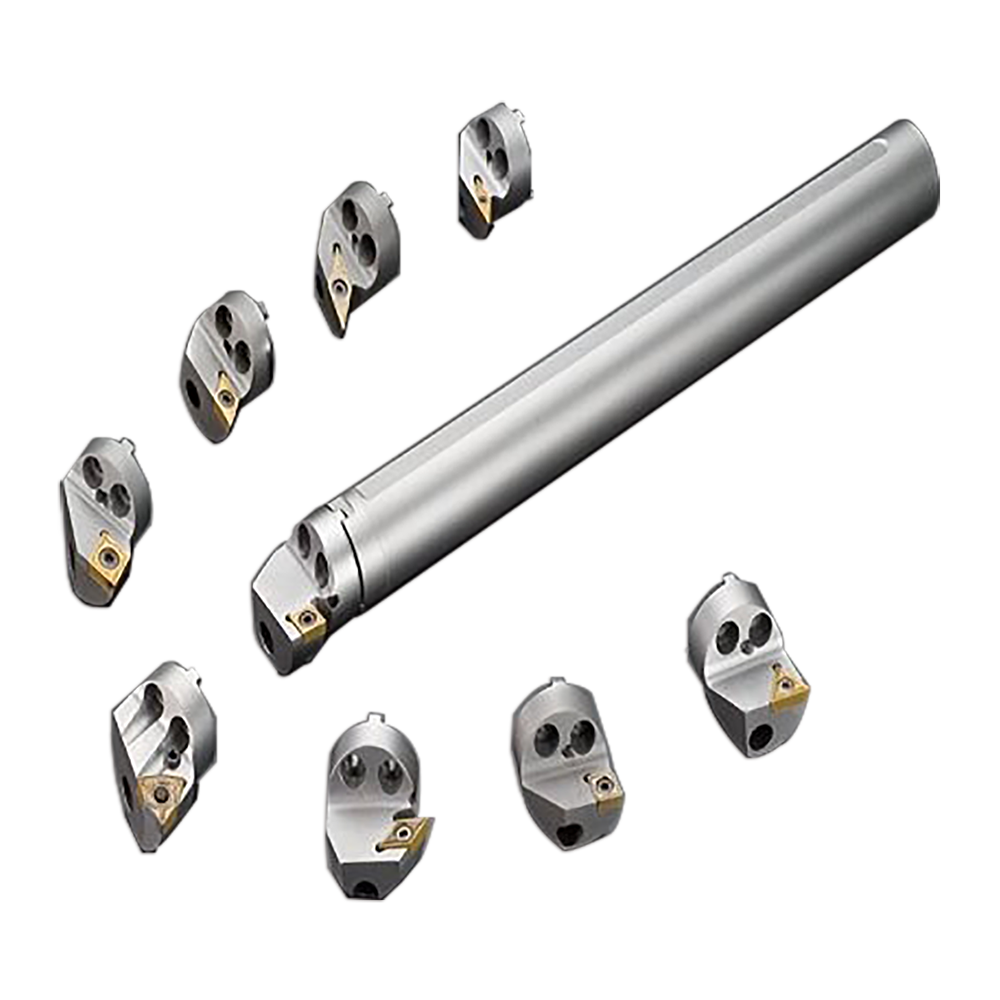

Anti-Vibration Boring Bar-Inside
- Applying to machine for deep hole.
- Saving tools cost for preparing several specification tools.
- Decreasing consumed inserts more than 30%
- Removable Cutting Head to replace
- High efficient anti-vibration ratio are 6-12
- Material: Alloy Steel/Hardness 42HRC
- Taiwan Patent: M385422
Unit：m/m
| Anti-Vibration Solid Boring Bar | |||
| R | NO. | Ø | Length |
| 4 | B20Q4-P-TYPE | 20 | 180 |
| B25R4-P-TYPE | 25 | 200 | |
| B32S4-P-TYPE | 32 | 250 | |
| 6 | B10M-S-TYPE | 10 | 150 |
| B12M-S-TYPE | 12 | 150 | |
| B14Q-S-TYPE | 14 | 180 | |
| B16Q-S-TYPE | 16 | 180 | |
| B18Q-S-TYPE | 18 | 180 | |
| Three-section Anti-Vibration Boring Bar | |||
| R | NO. | Ø | Length |
| 6 | M3S8K-S-Type | 8 | 125 |
| M3S10M-S-Type | 10 | 150 | |
| M3S12M-S-Type | 12 | 150 | |
| M3S14M-S-Type | 14 | 150 | |
| M3S16Q-S-Type | 16 | 180 | |
| M3S18Q-S-Type | 18 | 180 | |
| 8 | M3S10Q-S-Type | 10 | 180 |
| M3S12Q-S-Type | 12 | 180 | |
| M3S14Q-S-Type | 14 | 180 | |
| M3S16X-S-Type | 16 | 220 | |
| M3S18X-S-Type | 18 | 220 | |
| 10 | M3S12X-S-TYPE | 12 | 210 |
| M3S14X-S-TYPE | 14 | 240 | |
| M3S16S-S-TYPE | 16 | 250 | |
| M3S18X-S-TYPE | 18 | 280 | |
| 12 | M3S14X-S-TYPE | 14 | 260 |
| M3S16X-S-TYPE | 16 | 290 | |
| M3S18X-S-TYPE | 18 | 320 | |
| 14 | M3S14V-S-TYPE | 14 | 300 |
| M3S16X-S-TYPE | 16 | 330 | |
| M3S18U-S-TYPE | 18 | 350 | |
| Removable Type Cutting Head | |||
| R | NO. | Ø | Length |
| S | CH2-20-S-TYPE | 20 | S-TYPE |
| CH3-25-S-TYPE | 25 | S-TYPE | |
| CH4-32-S-TYPE | 32 | S-TYPE | |
| CH5-40-S-TYPE | 40 | S-TYPE | |
| P | CH2-20-P-TYPE | 20 | P-TYPE |
| CH3-25-P-TYPE | 25 | P-TYPE | |
| CH4-32-P-TYPE | 32 | P-TYPE | |
| CH5-40-P-TYPE | 40 | P-TYPE | |
| Removable Type LatheBoring Bar | |||
| R | NO. | Ø | Length |
| 6 | M6D-20-220 | 20 | 220 |
| M6D-25-250 | 25 | 250 | |
| M6D-32-300 | 32 | 300 | |
| M6D-40-350 | 40 | 350 | |
| M6D-50-400-40 | 50 | 400 | |
| M6D-60-450-40 | 60 | 450 | |
| 8 | M8D-20-260 | 20 | 260 |
| M8D-25-300 | 25 | 300 | |
| M8D-32-350 | 32 | 350 | |
| M8D-40-420 | 40 | 420 | |
| M8D-50-510-40 | 50 | 510 | |
| M8D-60-620-40 | 60 | 620 | |
| 10 | M10D-25-350 | 25 | 350 |
| M10D-32-420 | 32 | 420 | |
| M10D-40-530 | 40 | 530 | |
| M10D-50-668-40 | 50 | 668 | |
| M10D-60-808-40 | 60 | 808 | |
| M10D-25-350 | 25 | 350 | |
| Removable Type Tornado Speed Cutter | |||
| R | NO. | Ø | Length |
| 6 | TSC-20-200 | 20 | 200 |
| TSC-25-250 | 25 | 250 | |
| TSC-32-300 | 32 | 300 | |
| TSC-40-350 | 40 | 350 | |
| 8 | TSC-20-250 | 20 | 250 |
| TSC-25-300 | 25 | 300 | |
| TSC-32-350 | 32 | 350 | |
| TSC-40-420 | 40 | 420 | |
| 10 | TSC-20-300 | 20 | 300 |
| TSC-25-350 | 25 | 350 | |
| TSC-32-420 | 32 | 420 | |
| TSC-40-520 | 40 | 520 | |
| 12 | TSC-20-340 | 20 | 340 |
| TSC-25-400 | 25 | 400 | |
| TSC-32-490 | 32 | 490 | |
| TSC-40-580 | 40 | 580 | |
| 14 | TSC-20-380 | 20 | 380 |
| TSC-25-450 | 25 | 450 | |
| TSC-32-560 | 32 | 560 | |
| TSC-40-660 | 40 | 660 | |
