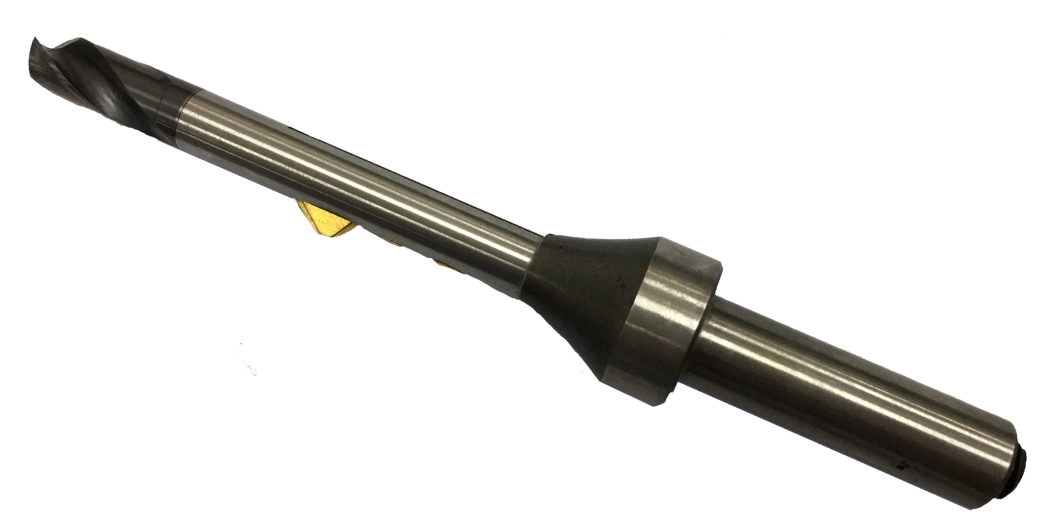

Drillbits and Inner-Outer Chamfer End Mills

Obtaining patents in many countries
Replaceable insert and drill
It especially could be processed in small pore
It could drill pore size from 3mm to 25mm

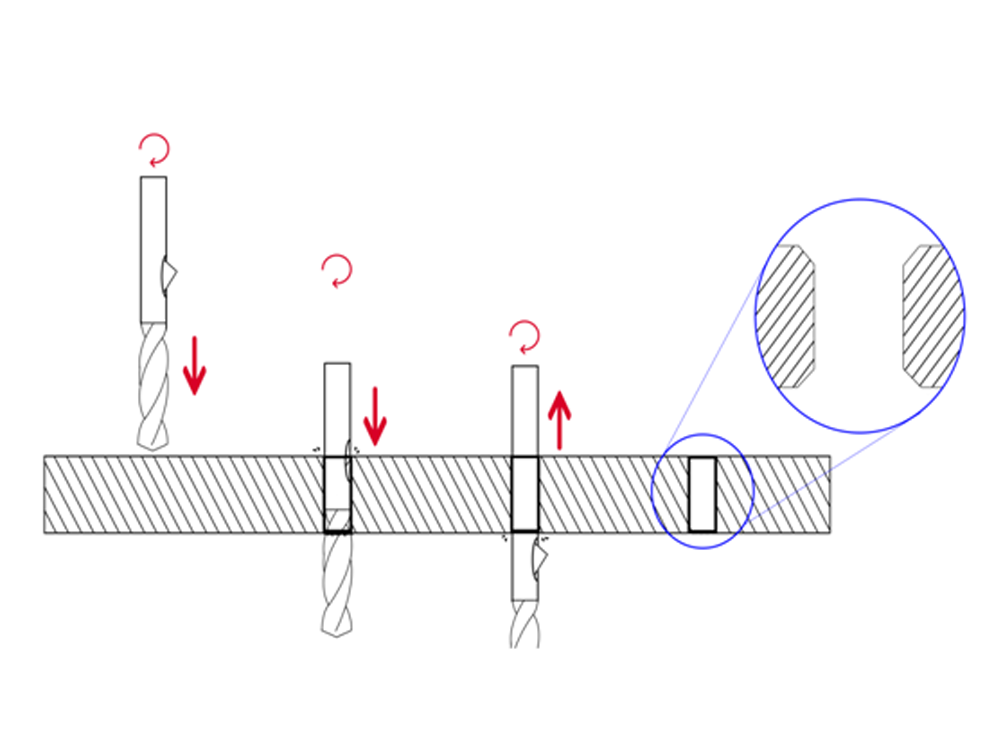

Completing process on the machine once

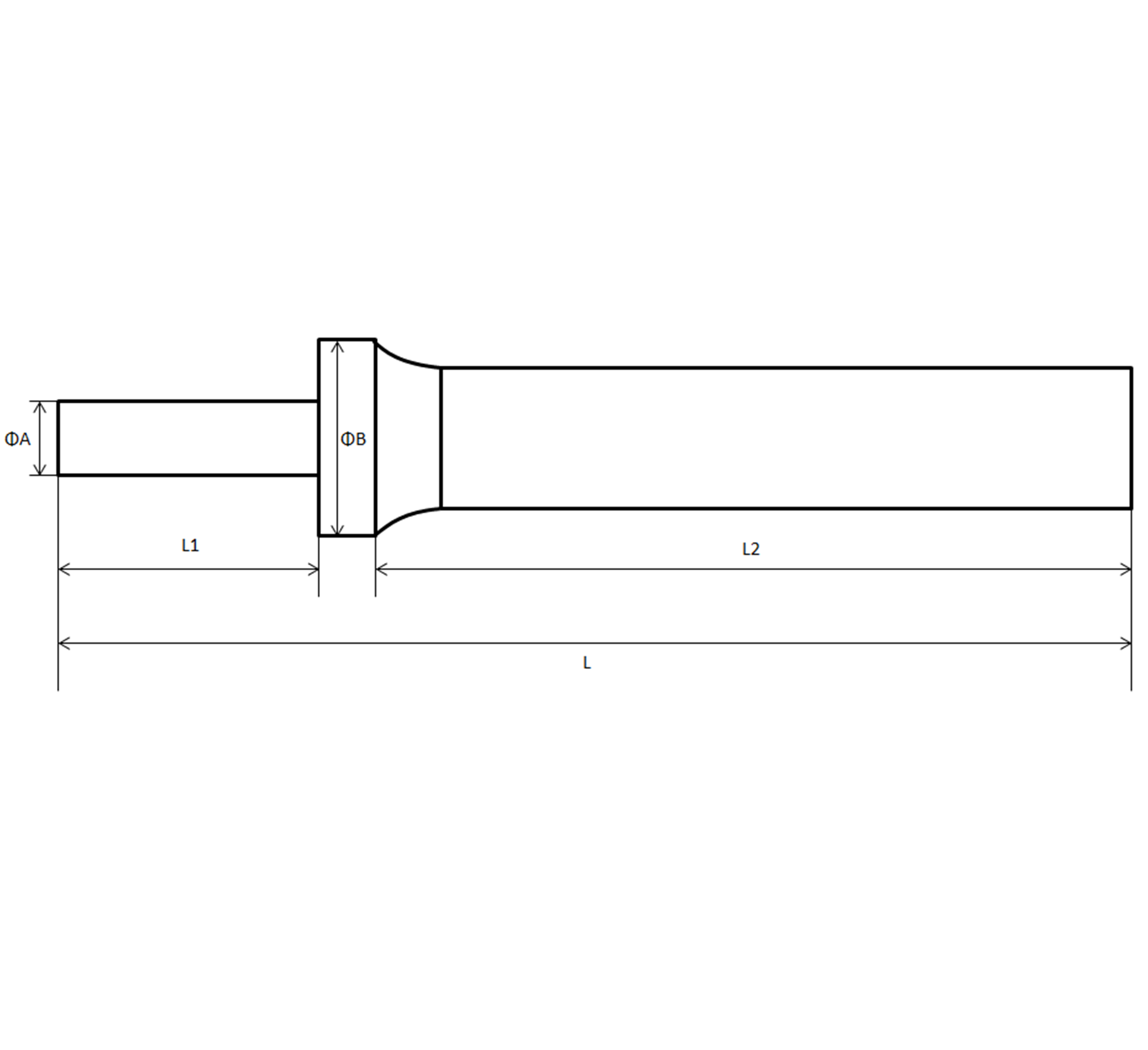

Unit：m/m

Model	Specification	L	L1	L2	⏀A	⏀B
DR-EM-3.0	3	70	30	35	10	16
DR-EM-3.5	3.5	70	30	35	10	16
DR-EM-4.0	4	70	30	35	10	16
DR-EM-4.5	4.5	70	30	35	10	16
DR-EM-5.0	5	70	30	35	10	16
DR-EM-5.5	5.5	83	30	48	10	16
DR-EM-6.0	6	83	30	48	10	16
DR-EM-6.5	6.5	83	30	48	10	16
DR-EM-7.0	7	83	30	48	10	16
DR-EM-7.5	7.5	83	30	48	10	16
DR-EM-8.0	8	83	30	48	10	16
DR-EM-8.5	8.5	83	30	48	10	16
DR-EM-9.0	9	83	30	48	10	16
DR-EM-9.5	9.5	83	30	48	12	20
DR-EM-10	10	103	40	57	12	20
DR-EM-10.5	10.5	103	40	57	12	20
DR-EM-11.0	11	103	40	57	12	20
DR-EM-11.5	11.5	103	40	57	12	20
DR-EM-12.0	12	103	40	57	12	20
DR-EM-12.5	12.5	103	40	57	12	20
DR-EM-13.0	13	103	40	57	12	20
DR-EM-13.5	13.5	103	40	57	12	20
DR-EM-14.0	14	103	40	57	12	20
DR-EM-14.5	14.5	103	40	57	12	20
DR-EM-15.0	15	103	40	57	12	20
DR-EM-15.5	15.5	103	40	57	12	20
DR-EM-16.0	16	103	40	57	12	20
DR-EM-16.5	16.5	103	40	57	12	20
DR-EM-17.0	17	103	40	57	12	20
DR-EM-17.5	17.5	128	50	70	12	20
DR-EM-18.0	18	128	50	70	12	20
DR-EM-18.5	18.5	128	50	70	12	20
DR-EM-19.0	19	128	50	70	12	20
DR-EM-19.5	19.5	128	50	70	12	20
DR-EM-20.0	20	128	50	70	12	20
DR-EM-20.5	20.5	128	50	70	12	20
DR-EM-21.0	21	128	50	70	12	20
DR-EM-21.5	21.5	128	50	70	12	20
DR-EM-22.0	22	128	50	70	12	20
DR-EM-22.5	22.5	128	50	70	12	20
DR-EM-23.0	23	128	50	70	12	20
DR-EM-23.5	23.5	128	50	70	12	20
DR-EM-24.0	24	128	50	70	12	20
DR-EM-24.5	24.5	128	50	70	12	20
DR-EM-25.0	25	128	50	70	12	20
